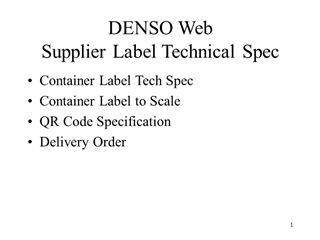

1.1 DENSO WebSupplier Label Technical Spec Container Label Tech Spec Container Label to Scale QR Code Specification Delivery Order
2.2 Container Label Tech Spec Part Number Block Title = Part Number Data Identifier = P Data = Part Number (including dash) Text Height = 7 mm Source = 862 Segment LIN03(BP) Maximum Length = 15 Serial Number Block Title = Serial # Data Identifier = 3S Data = Based on Supplier code and serial number (including dash) Text Height = 7 mm Source = 862 Segment N104(SU) Maximum Length = 12 Location Block Title = Location Data = Warehouse location Text Height = 6 mm Source = 862 Segment REF02(RL) Maximum Length = 5 Label Purpose: Identifies a part number in the container Size: 4 x 6.5; cardstock. Illustration is NOT actual size. Any dimensions that are not otherwise specified on this page SHALL be in compliance with AIAG B-10. Plant Code Block Title = Plant Code Data = Ship to plant Text Height =14 mm Source = 862 Segment N104(ST) Maximum Length = 2 Due Date Block Title = Due Date Data = Delivery due date Text Height = 6 mm Source = 862 Segment DTM02(002) Maximum Length = 8 Control Number Block Title = Control # Data = Control number from 862 Text Height = 6 mm Source = 862 Segment LIN07(KP) Maximum Length = 4 Warehouse Block Title = Warehouse Data = Receiving Warehouse Text Height = 6 mm Source = 862 Segment REF02(RV) Maximum Length = 1 Description Block Title = Description Data = Part Description Text Height = 5 mm Source = 862 Segment LIN05(PD) Maximum Length = 30 Block Title = Qty Data Identifier = Q Data = Based on Order quantity and Box quantity Text Height = 7 mm Source = 862 Segment P0402(BX) Maximum Length = 8
3.3 Container Label to Scale
4.4 QRCODE SPECIFICATIONS QR Code Model Mode 2 Enhanced Specifications with improved position correction and large volume of data capacity Symbol size Automatic From 25 x 25 modules per side to 181 x 181 modules per side with QuietZone (Version 1 to Version 40) Size grows by 4 modules per side Cell Width 05 dots Dot = 0.085mm in 300 dpi printer Rotation Angle 0 degrees No rotation Type Of Data used Alphanumeric Max. 4,296 characters QRCode is an ISO Standard regulated under the following code: (ISO/IEC18004) QRCODE Technical Specifications at Denso Manufacturing Tennessee, INC.
5.5 1 2 3 5 6 7 4 8 9 13 10 11 12 30 29 20 21 22 23 24 25 26 27 14 15 16 17 18 19 28 31 32
6.6 Delivery Order Detail
