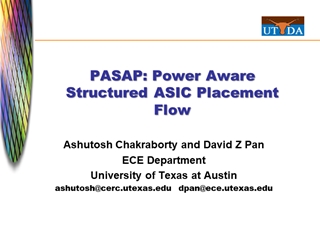

1.PASAP: Power Aware Structured ASIC Placement Flow Ashutosh Chakraborty and David Z Pan ECE Department University of Texas at Austin ashutosh@cerc.utexas.edu dpan@ece.utexas.edu
2.Outline Introduction & Motivation Architecture and power model Placement flow for low power (PASAP) Results Conclusions
3.Introduction – Structured ASICs Middle ground between ASICs and FPGAs “Almost like ASICs, but slight configurability” Devices and most metal layers mass produced Slight configurability using 1 or 2 metal layers, or Fuse top metal layer vias Just enough to create differentiated products while sharing same implementation platform Main problems: Power consumption Much better than FPGA, but worse than ASIC! 3
4.Introduction – Structured ASICs Customize top metal layers Warehouse Power may be the Achilles heal for adoption of structured ASICs in mobile/portable devices
5.Structured ASICs – Rough usage model Buy a structured ASIC platform (PLAT) Say having N pre-fabricated gates “Place” your gate level design on PLAT Say having M gates s.t. M < N Find pre-fabricated gates which are unused Disconnect from power supply. Different granularity. 5 Platform Shut off Netlist
6.Motivation – How to save more power? Existing method: Place gates, find unused component, shut them down “Shut down” at some levels of hierarchy (not very fine) Q: Is there a way to maximize such components? For example: Power(place. 1) > Power(place. 2) 6 VDD Placement 1 Placement 2 netlist
7.Key Idea / Problem Formulation Given: A structured ASIC platform of given capacity A gate level design to map on platform Granularity of power shut-off possible Perform: Legal placement (site, clock, and physical constraints) While maximizing components that are power shut-off Constraints: Should work transparently with existing tools 7
8.Outline Introduction & Motivation Architecture and power model Placement flow for low power (PASAP) Results Conclusions
9.Architecture of a Structured ASIC TILE FLOPS (DFF) LOGIC CELLS BLOCK RAM REGISTERS netlist
10.Placement constraints All cells must be assigned to correct location type Logic cell to red, DFF to green, etc No more than N global clocks in platform All global clocks routed to reach each tile No more than T clocks can enter a tile Constrained by routing ability within a tile Which T out of N clocks enter, can be configured 10 TILE 4 to 2 4 global clocks Any 2 can enter tile
11.Clock Distribution Model (platform level) Buffer B1 inserts clock in middle Distributed by B2 level to vertical half trunks Buffer B3 inserts clock in one tile TILE Horizontal Trunk Vertical Half Trunk
12.Clock Distribution Model (tile level) B4 level drives each column inside each tile BRAM / REG may need multiple drivers No need to drive LOGIC cells (combinational) Column
13.Clock shutdown model Input of any B1/B2/B3/B4 buffer can be disconnected by via programming Clock does not propagate to next level Saving switching power 13 Maximize unused vertical spines, horizontal segments and columns Higher abstraction the better saving.
14.Leakage reduction model Not related to clock distribution, but devices itself Millions of pre-fabricated gates Any column if totally unused, can be shut down. Need to maximize unused columns
15.Outline Introduction & Motivation Architecture and power model Placement flow for low power (PASAP) Results Conclusions
16.Power Aware Placement Flow Add pre-emptive blockages Global Placement Clock Legalization Column Minimization Column Assignment Wirelength Reduction Netlist Platform Done Previous work
17.Pre-emptive Blockage Insertion Idea: Make lightly used regions as blockages Forces placer not to use them Need to estimate the usage before placement Rough Placer (Whole platform) Usage and density analysis Create Spine and Tile blockages Real Placer (Partial platform) Next Stage
18.Spine and Tile Reduction Find spines with few cells in constituent tiles Find tiles with few cells in constituent columns Try to evict a spine with just a few cells in it Until some wirelength penalty is reached Try to evict a tile with just a few cells in it Until some wirelength penalty is reached Both the above procedure network flow based
19.Spine Reduction (network flow) 19 Destination Source Identify a low used spine Make dummy source Make dummy destination Add flow edges Source  tiles in spine Other tiles  destination Tile in spine  neighbor tiles Edge weight = Manhattan distance between tiles Move cells if flow possible Tile reduction is similar, see paper
20.Power Aware Placement Flow Add pre-emptive blockages Global Placement Clock Legalization Column Minimization Column Assignment Wirelength Reduction Netlist Platform Done
21.Column Minimization Until now, tried to make whole tile empty Now, redistribute cells to reduce #columns required Example: If each column can have at most 10 cells in it, and a tile has 21 cells, must use 3 columns. Want to move the 1 lonely cell to some other tile Solved using greedy movement Peephole W x H tiles dimension, slides over layout Sort tiles w.r.t. “lonely” cells Move in neighboring tile which can accept such cells Like: 21 + 24 (6 columns)  20 + 25 (5 columns)
22.Power Aware Placement Flow Add pre-emptive blockages Global Placement Clock Legalization Column Minimization Column Assignment Wirelength Reduction Netlist Platform Done
23.Column Minimization Until now, tried things external to a Tile Now, club together cells to reduce column count Using geometric clustering + assignment problem Example: maximum 2 cells per column. Cluster cells in bins of size 2 Assignment problem assign clusters => columns cost: wirelength increase Swap cells to reduce WL
24.Outline Introduction & Motivation Architecture and power model Placement flow for low power (PASAP) Results Conclusions
25.Benchmarks Gate level design (netlist) Platforms Used In next slides, easicXY = placement of easicX on platform Y
26.Results (Clock Power) Clock power reduction In the range of 28% to 61% Average over all benchmarks: 38% Clock switched network tightened significantly Baseline: Clock disconnect applied after existing placer
27.Results (Leakage Power) Leakage power reduction In the range of 7% to 40% Average over all benchmarks: 17% Higher number of columns can be turned off Baseline: Column disconnect applied after existing placer
28.Results (Components count) Raw numbers of # of components turned off # of unused Spines increases by 58% # of unused Tiles increases by 27% # of unused Columns increases by 42% CPU time increase = 29% Wirelength penalty: 16%
29.Conclusions Presented a placement flow to improve the possibility of application of power reduction strategies (by selective shutdown) Reduces clock power by as much as 60% and leakage power by as much as 40% compared to existing aggressive shutdown mechanism. Reduces active spine, tile, column count by 58%, 27% and 42% respectively.
